ULTRA-TROL® Control Valve Cut Sheet

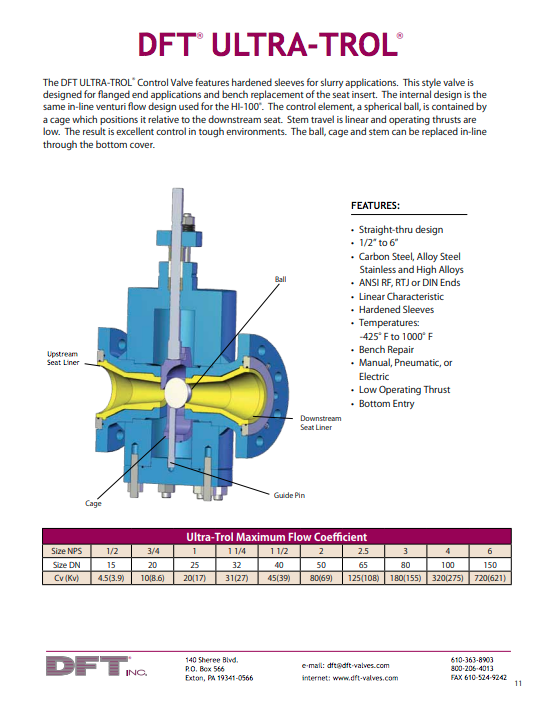

Ultra-Trol Diagram The DFT® ULTRA-TROL® Control Valve features hardened sleeves for slurry applications. This style valve is designed for flanged end applications and bench replacement of the seat insert. The internal design is the same in-line venturi flow design used for the HI-100®. The control element, a spherical ball, is contained by
a cage which positions it relative to the downstream seat. Stem travel is linear and operating thrusts are low.

The result is excellent control in tough environments. The ball, cage and stem can be replaced in-line through the bottom cover.

DFT® ULTRA-TROL® Control Valve features:

Straight-thru design
1/2” to 6”
Carbon Steel, Alloy Steel Stainless and High Alloys
ANSI RF, RTJ or DIN Ends
Linear Characteristic
Hardened Sleeves
Temperatures: -425°F to 1000°F
Bench Repair
Manual, Pneumatic, or
Electric
Low Operating Thrust
Bottom Entry

Learn more about this control valve by contacting DFT today.
